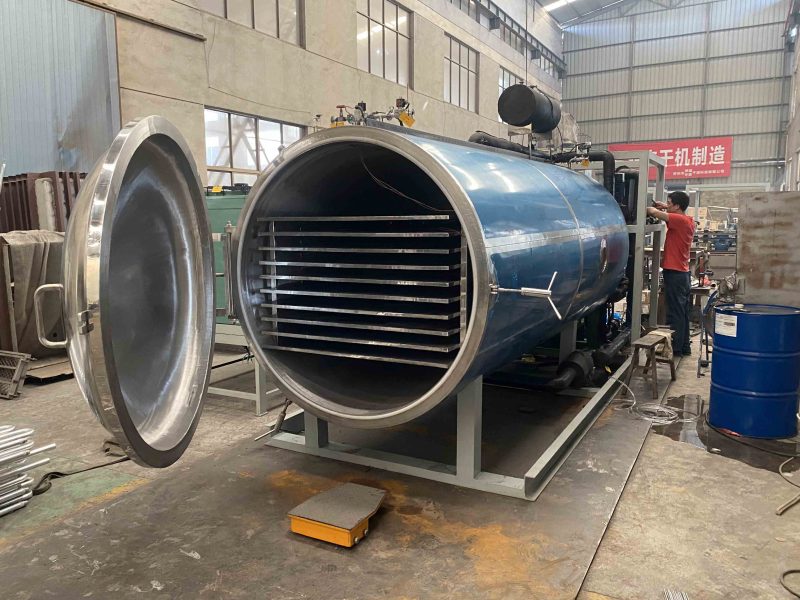

SSFD-300 freeze dry machine (freeze-drying area: 30m2) (quick freeze freeze-drying warehouse integrated model) The SSFD-300 freeze-drying equipment is very different from the SSFD-500 freeze dry machine. This freeze dry machine has a remote terminal system that can be viewed and operated simultaneously on both PC and mobile devices. The design of SSFD-300 freeze dry machine ensures worry free installation and debugging of the machine. The SSFD-300 is an integrated freeze-drying system, which means that all supporting systems and compartments have been assembled on one rack and tested before delivery. In fact, we have already conducted a full load trial production of a batch of ice at our factory before delivery. Therefore, customers can use it directly upon receipt. The SSFD-300 freeze-drying equipment consists of two units, including a compartment, refrigeration, vacuum, circulation, heating and control system, tray, external cooling tower in the hot zone, or air-cooled condenser in the cold zone, such as Sweden, Norway, Finland, Russia, Canada, and the three provinces of Xinjiang, Inner Mongolia, and Northeast China. The SSFD-300 is fully functional and suitable for freeze-drying. The biggest difference is that the product is also frozen in the freeze-drying equipment, rather than in the quick freezing warehouse. There is no freezer provided for this model, and a freezer is not required in this design. The freeze-drying procedure for SSFD-300 and all models smaller than this one is as follows: the prepared material is first frozen in the freeze-drying equipment. You just need to put the prepared materials into the product tray and load the product tray onto the shelf in the freeze-drying equipment room. Close the door and prepare for freeze-drying. The refrigeration system will cool the shelves and cool the materials in the product trays. There is a circulation of conductive fluid in the rack. Therefore, the shelves can be cooled or heated. After the material is completely frozen, the remaining procedures are the same as other models. This device has EU CE cert
specifications model | SSFD-300 |
Freeze dried area(m2) | 30m2 |
Tray area(m2) | 30m2 |
Loading capacity（kg） | 300kg |
Water supplement capacity of cold well（kg） | 600kg |
External dimensions（L* W * H mm） | 7500×1800×2300mm |
Plate layer temperature（℃） | -40~120℃ |
Cold well temperature（℃） | -55℃ |
Vacuum degree in the chamber（pa)） | 30pa |
Heating method | Silicone oil heating/10CS |
Industrial control host brand | Siemens PLC |
Installed power | 120KW |
Equipment weight | 9500kg |
Application display
About us
SHENSHENGThe company is located in Zhenglu Industrial Park, Tianning District, Changzhou City. It is a drying technology enterprise that integrates research and development, design, production, sales, and service. The company independently produces and sells freeze-drying machines, vacuum freeze-drying machines, pharmaceutical equipment, food equipment, and various production lines; Research and development of automation systems.
FAQ
Q：What is the working principle of freeze dryers ?
A：Freeze dryers remove moisture from wet liquids or solids by freezing them and then subjecting them to a vacuum environment. This process transforms the material into a dry powder or solid, extending its shelf life and stability.
Q：How do I choose the right freeze dryer model for my needs ?
A：Selecting a model depends on factors such as vour application, sample volume, freezing capacity. temperature control reguirements. and more. Our experts can provide customized recommendations.
Q：What are the key maintenance and care steps for freeze dryers ?
A：Maintenance involves regular cleaning, temperature control calibration, and replacing consumables like silicone gaskets to ensure the smooth operation of the freeze dryer.
Q：How can Iontimize the freeze-drving process to improve efficiency ?
A：Optimizing the process includes sample pretreatment. setting appropriate temperature and vacuur conditions. and monitoring the freeze-drving process to achieve the best results.
